Silvercord Duo24

Designed & handcrafted by Yannis Tomé

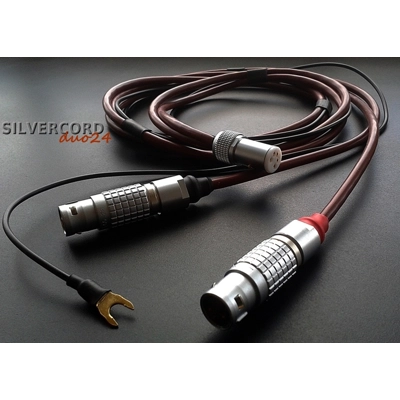

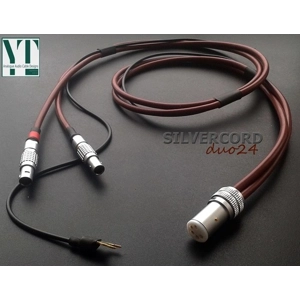

Silvercord Duo24 Balanced tonearm cable (DIN-LEMO / ODU / Fischer)

These balanced tonearm cables  are fitted with a standard, female 5pin tonearm connector (source) and a pair of 3pin connectors for connection to phono preamps fitted with LEMO, EDU and Fishcer sockets (i.e Gryphon Legato, Audiospecials Phonolab, Monophonic etc).

Silvercord Duo24
is the latest design of the Silvercord Series and it covers a range of low level analogue signal applications for Hi-Fidelity audio. We handcraft this cable using very high quality materials and a proven geometry, all chosen for their ability produce suitable electrical and mechanical characteristics. Silvercord Duo24 exhibits a set of electrical properties rarely achieved by such a compact cable profile.

Silvercord Duo24 is a versatile, handcrafted, analogue interconnect cable. It is ultra slim and flexible, with a symmetrical, shielded twisted pair design. Each channel features a pair of 24AWG pure OCC Silver conductors primarily insulated with an air/Teflon dielectric and then encased inside a layer of medium density Teflon bedding. Each channel is separately shielded by a high density, silver plated OFC copper braid with very high optical coverage and skin depth which provides a low impedance path to the ground. The cable is finished with a flexible silicone rubber jacket.

This balanced version of the Duo24 is configured with an external  ground lead for  connection to the chassis of the phono preamp and the cable shields connected to the ground pin of the LEMO connectors (as specified by most phono preamp manufacturers). If you require a different earthing arrangement please do let us know.

For more details and image galeries of the Silvercord Duo24 please visit
Silvercord Duo24 Phono


If you wish to add a certain customization to your order, please contact us at info@back-promo.co.uk .


Selecting your product options:
Length: Choose the length you require. The price of the cable will be adjusted automatically. If you wish to order your cable at a length other different from the ones listed, please contact us for a quote.

Tonearm Connector


Optional ground connection to  the turntable chassis    Most tuntables do not require this additional ground connection to their chassis. DIN tonearm cables always incorporate an internal ground connection in the tonearm connector. This option is only suitable for certain turntable models that have their chassis (or sub-chassis) electrically isolated by the tonearm mass (i.e. Linn LP12). In such cases we can supply the cable fitted with a suitable, additional ground lead to enable this connection (typically using an M4 ring terminal).



Angled DIN Pin orientation:

This option is only relevant if you choose to have your cable fitted with an angled tonearm connector. If you use a straight tonearm connector simply leave it to the default option

Not all tonearms have their pins rotated to the same direction. The pin orientation of your tonearm socket and the tonearm connector will determine the direction towards which the cable will exit the tonearm/turntable. By default all of our angled tonearm connectors are configured using “option 1” orientation as shown in the images, which is the most common. The choice depends on how the pins of your tonearm socket are rotated.

Option 1 is the default option for the vast majority of tonearms and tonearm cables.

Option 2 (180deg.) is the second most frequent option. It is typically used on Jelco tonearms but also on some Audioquest, Audiomods, Fidelity Research and Roskan models.

Option 3 is quite rare but it is often used on some SME tonearms when there is the need for the cable to be routed downwards.

Option 4 is the least common and it is typically used on Graham tonearms.

It is always advised to check your tonearm and see how its output pins are rotated so that you can choose the best option according your set up and cable “dressing” preferences.




Silvercord Duo24 specs.

Signal conductors x 2 (solid):  Pure OCC silver (99.999%)

Insulation (primary dielectric): Air / Solid PTFE

Insulation (bedding):  2 layers of Teflon wrap

Shield: Silver plated OFC Copper braid (98%)

Cable jacket: Brown silicone rubber

Cable diameter (per channel): 4.5mm

Effective conductor gauge: 24AWG

DC resistance: <0.077Ohm/m

Capacitance: 38.5pF/m (11.7pF/ft)

Inductance: 0.51uH/m (0.15pF/m)


.....

The Coppercord & Silvercord lines of cables feature low capacitance, handmade, solid core cables. The cables offered in this series, follow a similar geometry and share many design ideas. However, there are significant variations regarding their conductor material, dielectric and shielding. A wide selection of connectors is available for all the variations across this range of cables.

The Coppercord & Silvercord series is designed to offer outstanding sonic performance, by a professionally constructed and finished cable assembly. At the same time, these cables have a minimal, ‘no frills’ appearance which allows us to offer them at very competitive prices despite the high quality of their materials.

All of our handmade cables are researched, designed and produced by ourselves in our workshop in Wales using raw materials. We do not use off the reel cables or pre-insulated conductors and all the cables are made on order to our customers’ specifications. We are responsible for all production and distribution so that our selling prices are free from any marketing and distribution overheads

Back In 2014 we decided to design a line of analogue audio cables which could deliver very similar performance to our CLIO cables but it could also be offered at an even more affordable price. A year later we launched Silvercord cables followed by Silvercord Plus. In this line of pure silver cables we also added our Coppercord cables (2016), featuring similar principles but using OCC copper instead of OCC silver as their signal conductors. In 2021 we also introduced the Silvercord Duo24 phono and line level interconnect cables. .

All of the phono cable designs in the Silvercord & Coppercord lines share some common principles: Very low capacitance, high purity continuous casting silver and copper conductors, insulation with very low dielectric involvement, heavy shielding using a minimum of a silver plated OFC copper braid with 98% optical coverage (this is one of the finest shielding braids available in the market, by far exceeding the standards of the shields used on audio cables) and a minimal but elegant appearance with an outer silicone compound cable jacket.

The challenge with such cable designs is to assemble and finish them in a manner that ensures consistency of the conductors alignment, durability against regular handling, resistance to the environmental impact, and a user friendly profile with suitable mechanical characteristics. Although the above seem straightforward and they are taken for given, they are usually absent from most handmade (and not only) high end cables. The finish of the cables is kept as minimal as possible but we have chosen to use a high quality airtight insulation for the cable jacket. Braided sleeves that are often used on handmade cables may look appealing but unless the cable assembly is properly finished with a suitable cable jacket, the braided sleeve will not offer any substantial protection to the cable. Braided sleeves allow air and moisture to penetrate a cable that does not have a proper jacket resulting to oxidization of the metal parts and higher levels of energy storing  by the cable dielectric over a short period of time. At the same time braided sleeves offer very little in maintaining the dimensional stability of the cable and mechanically support to the inner assembly. They overall offer a very poor electrical isolation between the cable and its environment and their main role is to be used as an added layer of protection against vibration and handling; not to replace the cable jacket itself.

The extremely flexible silicone jackets we use on the SIlvercord & Coppercord cables, along with a combination of solid and medium density inner insulation and  fine stranded braided shields result to a highly flexible profile. These cables can be used with ease on turntables that require extensive flexing of the signal cable and reduce any mechanical feedback on the tonearm itself. You will find that not only the sonic performance of the Silvercord & Coppercord cables is well above what their price suggests, but also their craftsmanship is beyond one’s expectations for such modest cables.

In a nutshell, the main reasons for choosing one of our Cord Series cables:
- One of the most effective shielding arrangements with a very high coverage and skin depth and low impedance to the ground
- Very low capacitance
- Extremely flexible (for ease of installation and minimal mechanical feedback/strain on the tonearm and the turntable suspension)
- Outstanding build quality and finish to ensure consistent performance and durability over a very long period of time.
- Dedicated, precision executed design, to accommodate optimal geometry, dielectric and conductor material.
